LG系列節流裝置
一、概述
LG系列節流裝置是與差壓計配套使用的，用于測量液體、蒸汽、氣體的流量。廣泛的應用在石油、化工、冶金、電力和輕工等工業部門。

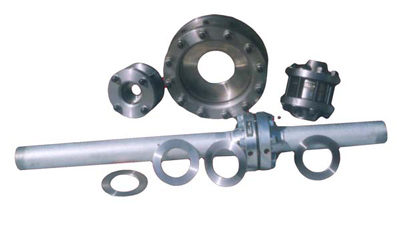

節流裝置分孔板、噴嘴、流量管三大類品種，具有結構簡單、精度高、可靠性好、應用范圍廣等特點。
作為節流裝置專業生產廠家，我公司曾參與起草制訂了差壓式流量計國家計量檢定規程。我公司生產的節流裝置以品種全，生產工藝成熟，可靠性好，人無我有，人有我全，人全我優見長。
二、節流裝置型號的編制
|
LG系列節流裝置代號、型號的編制積技術參數和性能: L（流量表）+G（節流裝置）+節流元件+取壓方法+取壓形式+公稱壓力．公稱通徑．組成結構 (如:LGBJH1.0-100-1 LGQJK1.0-500-14 LGBFK10-200-21等) |
|||
| 節流元件: B－標準孔板； |
取壓方法： J－角接取壓法； |
取壓形式: H－環室； |
|
| 組成結構： 圖１－圖２６（詳見產品的選型樣本）
|
|||
| 公稱壓力系列：0.25 0.6 1.0 1.6 2.5 4.0 6.4 10 16 18.4 20 22 23 28 32
|
|||
| 公稱通徑系列: 15 20 25 32 40 50 65 80 100 125 150 175 200 225 250 300 350 400 450 500 600 700 800 900 1000 1200 1400 1600 1800 2000
|
|||
|
類別
|
取壓方式
|
名稱
|
型號
|
技 術 參 數 |
供貨范圍安裝圖
|
技術標準
|
|||
|
公稱壓力（MPa）
|
公稱通徑
|
直徑比（ß） | 雷諾數（Re） | ||||||
|
孔
板 |
角
接
取
壓
法 |
標
準
孔
板 |
LGBJH1.0-1
|
1.0
|
50-400
|
0.20-0.75 0.20-0.45 >0.45 |
>=5000 >=10000 |
圖1
|
GB/T2624-93(即ISO5167-1-91)
D<50mm及D>1000mm執行YY(廠標) |
|
LGBJH2.5-1
|
2.5
|
50-400
|
|||||||
|
LGBJH4.0-2
|
4.0
|
50-400
|
圖2
|
||||||
|
LGBJH6.4-2
|
6.4
|
50-400
|
|||||||
|
LGBJH10-3
|
10
|
50-400
|
圖3
|
||||||
|
LGBJH20-3
|
20
|
50-250
|
|||||||
|
LGBJH1.0-4
|
1.0
|
50-400
|
圖4
|
||||||
|
LGBJH2.5-4
|
2.5
|
50-400
|
|||||||
|
LGBJH4.0-5
|
4.0
|
50-400
|
圖5
|
||||||
|
LGBJH6.4-5
|
6.4
|
50-400
|
|||||||
|
LGBJH1.0-6
|
1.0
|
50-400
|
圖6
|
||||||
|
LGBJH2.5-6
|
2.5
|
50-400
|
|||||||
|
LGBJH4.0-7
|
4.0
|
50-400
|
圖7
|
||||||
|
LGBJH6.4-7
|
6.4
|
50-400
|
|||||||
|
LGBJH10-8
|
10
|
175-250
|
圖8
|
||||||
|
LGBJH18.4-8
|
18.4
|
45-250
|
|||||||
|
LGBJH23-8
|
23
|
45-300
|
|||||||
|
LGBJH28-8
|
28
|
45-300
|
|||||||
|
LGBJK1.0-9
|
1.0
|
50-400
|
圖9
|
||||||
|
LGBJK2.5-9
|
2.5
|
50-400
|
|||||||
|
LGBJK4.0-10
|
4.0
|
50-400
|
圖10
|
||||||
|
LGBJK6.4-10
|
6.4
|
50-400
|
|||||||
|
LGBJK0.25-11
|
0.25
|
450-1600
|
圖11
|
||||||
|
LGBJK0.6-11
|
0.6
|
450-1400
|
|||||||
|
LGBJK1.0-11
|
1.0
|
450-1200
|
|||||||
|
LGBJK1.6-11
|
1.6
|
450-1200
|
|||||||
|
LGBJK2.5-11
|
2.5
|
450-800
|
|||||||
|
雙孔板
|
LGSJH1.0-12
|
1.0
|
50-400
|
0.32-0.77 | 3000-16000 |
圖12
|
YY(廠標)
|
||
|
LGSJH2.5-12
|
2.5
|
50-400
|
|||||||
|
透鏡孔板
|
LGTJK22-13
|
22
|
15-150
|
0.20-0.75 | 5000-10000 |
圖13
|
|||
|
LGTJK32-13
|
32
|
15-150
|
|||||||
|
圓缺孔板
|
LGQJK0.25-14
|
0.25
|
50-1600
|
0.32-0.85 | 5000-200000 |
圖14
|
|||
|
LGQJK0.6-14
|
0.6
|
50-1400
|
|||||||
|
LGQJK1.0-14
|
1.0
|
50-1200
|
|||||||
|
LGQJK1.6-14
|
1.6
|
50-1200
|
|||||||
|
LGQJK2.5-14
|
2.5
|
50-800
|
|||||||
|
小孔板
|
LGXJH1.0-15
|
1.0
|
15-40
|
0.15-0.75 | 2000-1000000 |
圖15
|
|||
|
LGXJH2.5-15
|
2.5
|
15-40
|
|||||||
|
LGXJH6.4-16
|
6.4
|
15-40
|
圖16
|
||||||
|
法
蘭 取 壓 法 |
標
準 孔 板 |
LGBFK1.0-17
|
1.0
|
50-400
|
0.20-0.75 >0.45 |
>1260ß |
圖17
|
GB/T2624-93
|
|
|
LGBFK2.5-17
|
2.5
|
50-400
|
|||||||
|
LGBFK4.0-18
|
4.0
|
50-400
|
圖18
|
||||||
|
LGBFK6.4-18
|
6.4
|
50-400
|
|||||||
|
LGBFK6.4-19
|
6.4
|
50-400
|
圖19
|
||||||
|
LGBFK10-19
|
10
|
50-300
|
|||||||
|
LGBFK16-19
|
16
|
50-300
|
|||||||
|
LGBFK6.4-20
|
6.4
|
50-400
|
圖20
|
||||||
|
LGBFK10-20
|
10
|
50-300
|
|||||||
|
LGBFK16-20
|
16
|
50-300
|
|||||||
|
LGBFK6.4-21
|
6.4
|
50-400
|
圖21
|
||||||
|
LGBFK10-21
|
10
|
50-300
|
|||||||
|
LGBFK16-21
|
16
|
50-300
|
|||||||
|
小孔板
|
LGXFK2.5-22
|
2.5
|
15-40
|
0.15-0.75 | 2000-1000000 |
圖22
|
YY(廠標)
|
||
|
LGXFK6.4-22
|
6.4
|
15-40
|
|||||||
|
LGXFK10-22
|
10
|
15-40
|
|||||||
|
LGXFK2.5-23
|
2.5
|
15-40
|
圖23
|
||||||
|
LGXFK6.4-24
|
6.4
|
15-40
|
圖24
|
||||||
|
噴
嘴 |
角
接 取 壓 法 |
標
準 噴 嘴 |
LGPJH1.0-1
|
1.0
|
50-400
|
0.30-0.80 0.30-0.44 0.44-0.80 |
20000-10000000 70000-10000000 |
圖1
|
GB/T2624-93
D<50mm 執行YY(廠標) |
|
LGPJH2.5-1
|
2.5
|
50-400
|
|||||||
|
LGPJH4.0-2
|
4.0
|
50-400
|
圖2
|
||||||
|
LGPJH6.4-2
|
6.4
|
50-400
|
|||||||
|
LGPJH10-3
|
10
|
50-400
|
圖3
|
||||||
|
LGPJH20-3
|
20
|
50-250
|
|||||||
|
LGPJH1.0-4
|
1.0
|
50-400
|
圖4
|
||||||
|
LGPJH2.5-4
|
2.5
|
50-400
|
|||||||
|
LGPJH4.0-5
|
4.0
|
50-400
|
圖5
|
||||||
|
LGPJH6.4-5
|
6.4
|
50-400
|
|||||||
|
LGPJH1.0-6
|
1.0
|
50-400
|
圖6
|
||||||
|
LGPJH2.5-6
|
2.5
|
50-400
|
|||||||
|
LGPJH4.0-7
|
4.0
|
50-400
|
圖7
|
||||||
|
LGPJH6.4-7
|
6.4
|
50-400
|
|||||||
|
LGPJH10-8
|
10
|
175-250
|
圖8
|
||||||
|
LGPJH18.4-8
|
18.4
|
45-250
|
|||||||
|
LGPJH23-8
|
23
|
45-300
|
|||||||
|
LGPJH28-8
|
28
|
45-300
|
|||||||
|
圓
弧 噴 嘴 |
LGYJH1.0-1
|
1.0
|
50-400
|
0.25-0.70 | 200-200000 7000-60000 |
圖1
|
YY(廠標)
|
||
|
LGYJH2.5-1
|
2.5
|
50-400
|
|||||||
|
LGYJH4.0-2
|
4.0
|
50-400
|
圖2
|
||||||
|
LGYJH6.4-2
|
6.4
|
50-400
|
|||||||
|
LGYJH10-3
|
10
|
50-400
|
圖3
|
||||||
|
LGYJH20-3
|
20
|
50-250
|
|||||||
|
LGYJH1.0-4
|
1.0
|
50-400
|
圖4
|
||||||
|
LGYJH2.5-4
|
2.5
|
50-400
|
|||||||
|
LGYJH4.0-5
|
4.0
|
50-400
|
圖5
|
||||||
|
LGYJH6.4-5
|
6.4
|
50-400
|
|||||||
|
LGYJH1.0-6
|
1.0
|
50-400
|
圖6
|
||||||
|
LGYJH2.5-6
|
2.5
|
50-400
|
|||||||
|
LGYJH4.0-7
|
4.0
|
50-400
|
圖7
|
||||||
|
LGYJH6.4-7
|
6.4
|
50-400
|
|||||||
|
LGYJH10-8
|
10
|
175-250
|
圖8
|
||||||
|
LGYJH18.4-8
|
18.4
|
45-250
|
|||||||
|
LGYJH23-8
|
23
|
45-300
|
|||||||
|
LGYJH28-8
|
28
|
45-300
|
|||||||
|
小噴嘴(圓弧式)
|
LGNJH1.0-15
|
1.0
|
15-40
|
0.28-0.65 | 200-200000 650-76000 |
圖15
|
|||
|
LGNJH2.5-15
|
2.5
|
15-40
|
|||||||
|
LGNJH6.4-16
|
6.4
|
15-40
|
圖16
|
||||||
|
法
蘭 取 壓 法 |
LGNFK2.5-22
|
2.5
|
15-40
|
圖22
|
|||||
|
LGNFK6.4-22
|
6.4
|
15-40
|
|||||||
|
LGNFK10-22
|
10
|
15-40
|
|||||||
|
LGNFK2.5-23
|
2.5
|
15-40
|
圖23
|
||||||
|
LGNFK6.4-24
|
6.4
|
15-40
|
圖24
|
||||||
|
徑距法
|
長徑噴嘴
|
LGCGK20-25
|
20
|
100-400
|
0.2-0.8 | 10000-10000000 |
圖25
|
GB/T2624-93
|
|
|
流量管
|
0.5D/0.5d法
|
文丘里管
|
LGWAH0.6-26
|
0.6
|
200-1200
|
0.4-0.7 | 200000-2000000 |
圖26
|
|
|
LGWAH1.0-26
|
1.0
|
200-1200
|
|||||||
